Overview

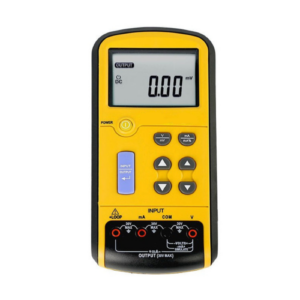

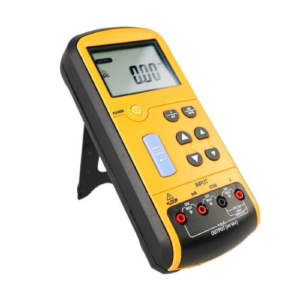

Enviro Forest’s high accuracy multifunction process calibrator with dual LCD and IP65 is designed for laboratories, industrial environments, and fieldwork applications. This device supports DC voltage and current input or output with high accuracy, adjustable calibration source, and a dual large 5-digit LCD display for precise readings. It features loop power output, overvoltage protection, and a standard jack for external supply. Powered by six AAA batteries, it ensures portability and reliability for voltage and current testing tasks.
Features
- High accuracy voltage and current measurement
- Dual large 5-digit LCD display (64 × 42 mm)
- Adjustable calibration source
- Loop power output
- Overvoltage protection
- Voltage driver capability of 1 mA
- Standard jack for external supply
- Portable with battery operation
- IP65 protection class
Technical Specifications
| DC Voltage Input & Output | 0 to 100.00 mV or 0 to 20.000 V ± (0.02%+3) |
| DC Current Input & Output | 0 to 24.000 mA ± (0.015%+3) |
| Loop Power Output | 24 V ± 10% |
| Overvoltage Protection | 30 V |
| Voltage Driver Capability | 1 mA |
| Input Impedance | 2 MΩ |
| Fuse (fast acting) | 125 mA, 250 V |
| Battery | 1.5 V (AAA) × 6 |
| Dimensions | 8.0 in × 3.8 in × 1.6 in (20.4 cm × 9.6 cm × 4.1 cm) |
| Weight | 1.54 lb (700 g) |
