Features

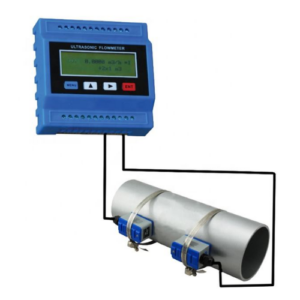

- Clamp-on ultrasonic flow meter
- Accuracy: ±1%, Repeatability: 0.2%
- Velocity range: 0.03–±32 m/s
- Fast measurement period: 0.5s
- Outputs: 4-20mA, RS485
- Power supply: 220VAC / 8–36VDC
- Wide temp range: -40~+160℃
- Compact, durable ABS & metal design
Technical Specification
| Specification | Details |
| Host Principle | Transit-time ultrasonic flowmeter |
| Accuracy | ±1% |
| Signal Output | 1 way 4–20mA output, resistance 0–1K, accuracy 0.1% (optional) 1 way OCT pulse output |
| Display | 2×20 character LCD with backlight, supports Chinese, English, Italian |
| Signal Input | 3 way 4–20mA input, accuracy 0.1% (for temperature, pressure, liquid level) |
| Data Interface | Insulated RS485 serial interface, supports MODBUS, software upgrade via PC |
| Special Cable | Twisted-pair cable ≤164 ft (50 m) With RS485, transmission distance >3280 ft (1000 m) |
| Pipe Installation | Materials: Steel, stainless steel, cast iron, copper, cement, PVC, aluminum |
| Measuring Medium | Water, seawater, alcohol, acid, alkali, wastewater, beer, oil (single liquid capable of transmitting sound waves) |
| Flow Rate | 0 to ±7 m/s (0 to ±22.97 ft/s), forward and backward measurement |
| Medium Temperature | -30 to 160 °C (-22 to 320 °F) |
| Turbidity | ≤10000 ppm, fewer bubbles |
| Work Environment | Protection grade: Host IP67, Sensor IP68 Host temperature: -20 to 60 °C (-4 to 140 °F) |
