Features
- Measures low resistance with high 0.05% precision and 50,000 counts resolution
- Fast measurement speed with a sampling rate of 60 readings per second
- Supports four-wire resistance measurement with temperature compensation

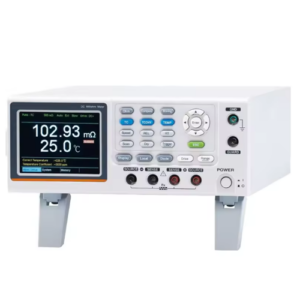

- Equipped with a 3.5-inch TFT LCD display for clear data visualization
- Stores up to 20 sets of panel settings and supports multiple drive modes

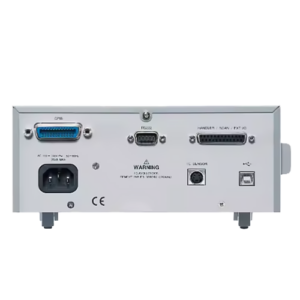

- Offers versatile connectivity with USB, RS-232C, Handler/Scan/EXT I/O, and GPIB (optional)
Technical Specifications
| Display Type | 3.5-inch TFT LCD, 320 pixels x 240 pixels |
| Display Counts | 50,000 counts |
| Resolution | 5.5 digits |
| Accuracy | ±0.05% |
| Channels | 1 channel |
| Function | Test measurement |
| Measurement Method | Four-wire resistance measurement |
| Temperature Measurement | Yes, with temperature compensation |
| Sample Rate | 60 readings per second |
| Test Current | Up to 1 A |
| Drive Modes | GOM-804: DC+, Standby GOM-805: DC+/DC-, Pulsed, PWM, Zero, Standby |
| Panel Memory | Up to 20 sets of panel settings |
| Interfaces | USB, RS-232C, Handler/Scan/EXT I/O, GPIB (optional) |
| Power Supply | Standard AC power input |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Operating Humidity | ≤80% RH |
| Dimensions | 15.35 in x 9.84 in x 8.66 in (39 cm x 25 cm x 22 cm) |
