Overview

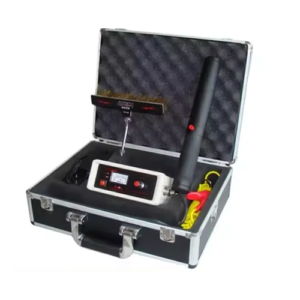

Enviro Forest high voltage pinhole detector with low power consumption is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is simple and practical equipment. The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.
Features
- Low power consumption
- Small size
- Light weight
- Simple operation
Technical Specifications
| Measuring range | 0.001 in to 0.39 in (0.003 cm to 1 cm) |
| Output high voltage | 0.5 KV to 35 KV |
| Display | Pointer |
| High voltage control system | Ordinary potentiometer adjustment |
| DC supply | 12 v |
| Consumption | <5 w |
| Alarm delay | 1 s to 2 s |

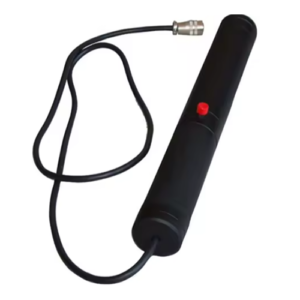

| High voltage probe | Electronic high voltage generator |
| Main dimension | 6.49 in × 6.10 in × 2.67 in (16.5 cm × 15.5 cm × 6.8 cm) |
| Weight | 3.31 lb (1.5 kg (Including battery)) |
