Overview

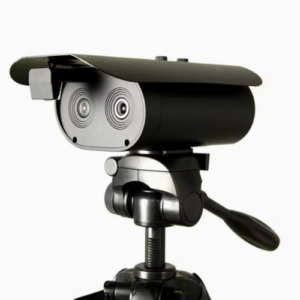

Enviro Forest Infrared Temperature Screening Device with 1–3m Detection provides fast, accurate temperature readings with a wide measurement range. This device is compact and easy to deploy, ideal for entrances and checkpoints. It measures temperatures from 68–122°F (20–50°C) with ±0.3°C (±0.54°F) accuracy and can detect individuals at 3.3–9.8 ft (1–3 m).
Features
- Accurate infrared temperature detection: 68–122°F (20–50°C)
- Measuring distance: 3.3–9.8 ft (1–3 m)
- Accuracy: ±0.54°F (±0.3°C)
- Compact and lightweight design
- Easy deployment for entrances, offices, and checkpoints
- Protective box size: 9.06 × 5.61 × 3.48 in (230 × 142.6 × 88.5 mm)
Technical Specifications
| Frame Rate | 15 Hz |
| Detector Type | Uncooled infrared array sensor |
| Resolution (Output) | 160 × 120 (384 × 288) |
| Pixel Spacing | 17 μm |
| Working Band | 8–14 μm |
| Detector NETD | ≤ 60 mK (F/1300K, 50 Hz) |
| Temperature Measurement Output | Full range temperature output |
| Temperature Measurement Range | 20 °C–50 °C (68 °F–122 °F) |
| Field Of View Angle | 40° × 30° |
| People Inspected Per Minute | 150–200 |
| Effective Radiation Area | 20 mm × 30 mm (0.79 in × 1.18 in) |
| Area Emissivity | 0.96 ± 0.02 |
| Temperature Range | (Ambient +5 °C) to 50 °C ((Ambient +9 °F) to 122 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Stability Accuracy | Better than ±0.1 °C (±0.18 °F) |
| Heating Time | < 2 minutes |
| Resolution (Visible Camera) | 2 Megapixel |
| Focal Length | 6 mm |
| Imaging Device | CMOS |
| Minimum Illumination | 0.01 Lux (color mode), 0.001 Lux (B&W mode) |
| Signal-to-Noise Ratio (SNR) | > 56 dB |
| Voltage | 5V access |
| SOC | Broadcom BCM2711 |
