Overview

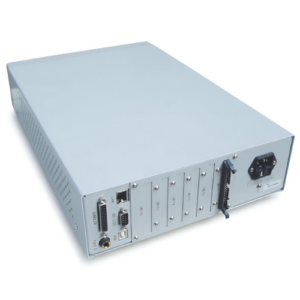

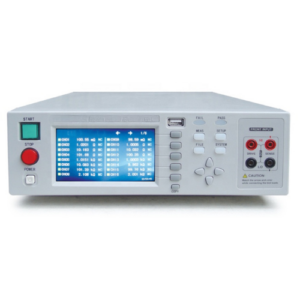

Enviro Forest’s multi-channel digital micro ohmmeter with data logging and high-precision DC resistance tester with 0.05% accuracy and 10 μΩ resolution. Supports up to 90-channel programmable scanning, stand-alone operation, data logging, and multiple trigger modes. Features a 4.3-inch color touch LCD, temperature compensation, and full short-circuit clear. Compact design [11.02 in x 3.46 in x 17.32 in (280 mm x 88 mm x 440 mm)] and 26.46 lb (12 kg) weight make it ideal for lab and industrial use.
Features
- High measurement accuracy of 0.05%
- 3-inch color touch LCD display
- Supports up to 90-channel scanning tests
- Programmable test channel configuration
- Multiple trigger modes for flexible operation
- Minimum resolution of 10 μΩ
- Stand-alone and scanning measurement modes
- Data logging and one-click screen capture
- Short-circuit clear correction for all channels
- Temperature compensation function
Technical Specifications
| Measuring Parameters | DC resistance |
| Resistance Test Range | 10 μΩ to 200 kΩ |
| Basic Resistance Accuracy | 0.05% |
| Resistance Ranges | Auto and manual (200 mΩ, 2 Ω, 20 Ω, 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ) |
| Minimum Resolution | 10 μΩ |
| Measurement Modes | Stand-alone, scanning |
| Scanning Channels | Up to 90 channels (15 per board, 6 boards maximum) |
| Test Terminal Configuration | Programmable between channels |
| Test Current | ≤ 100 mA |
| Measurement Speed | Single board: 100, 40, or 2 times per second
Six boards: 600, 240, or 12 times per second |
| Display | 4.3 inch color touch LCD (480 x 272) |
| Display Results | 16-channel simultaneous display with page turning |
| Comparator | Individual comparison boundaries per channel |
| Limit Modes | ABSDev, ABS, % |
| Trigger Modes | Auto, manual, bus, handler, foot switch |
| Data Storage | 30 sets of instrument parameters |
| Temperature Compensation | Yes |
| Short-Circuit Clear | Full-scale short-circuit clearing for all channels |
| Operating Temperature | 68 °F to 122 °F (20 °C to 50 °C) |
| Dimensions | 11.02 in x 3.46 in x 17.32 in (280 mm x 88 mm x 440 mm) |
| Product Weight | 26.46 lb (12 kg) |
