Overview

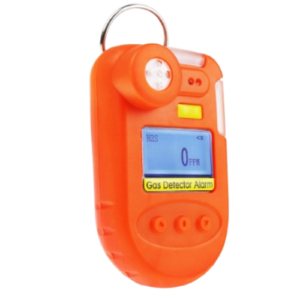

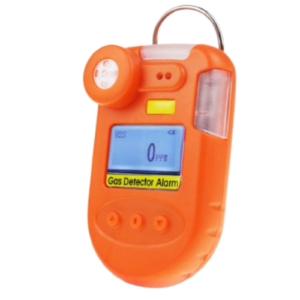

This meter is designed for explosive environments, as it detects gas leakage through natural diffusion using a high-quality sensor for excellent sensitivity and repeatability. It is made of synthetic resin precision casting for anti-skidding, waterproof, dust-proof, and explosion-proof properties.
Features
- Advanced MCU control with low power consumption for long-lasting use.
- Intrinsic safety design suitable for explosive environments.
- High-quality electrochemical sensor ensures excellent sensitivity and repeatability.
- Detects Hydrogen Sulfide (H₂S) gas in the range of 0–100 ppm with 1 ppm resolution.
- Visual, audible, and vibration alarms provide instant alerts in hazardous conditions.
- Fast response time through natural diffusion detection.
- Durable synthetic resin body with anti-skid, waterproof, dust-proof, and explosion-proof protection.
- Rechargeable Li-ion battery (1700mAh) with 4–6 hours charging time.
- Compact and portable design with a back clip for easy carrying.
- Wide working range: Operates from -20℃ to 70℃ and up to 95% RH (non-condensing).
- IP65 protection level ensures reliable operation in harsh industrial environments.
Technical Specifications
| Type | Hydrogen Sulfide (H₂S) Detector |
| Detected Gas | Hydrogen Sulfide (H₂S) |
| Measuring Range | 0 – 100 ppm |
| Resolution | 1 ppm |
| Accuracy | ±3% FS |
| Sensor Type | Electrochemical |
| Alarm Modes | Sound, LED, Vibration |
| Power Source | DC 3.7V Li-ion Battery (1700mAh) |
| Battery Life | Up to 20 hours continuous operation |
| Charging Time | 4 – 6 hours |
| Display | LED Indicators & Alarm Signals |
| Data Logging | Up to 1000 readings (optional, if supported) |
| Communication | Optional Bluetooth / Wireless (for remote monitoring, if supported) |
| Protection Level | IP65 |
| Operating Temperature | -4°F to 158°F (-20℃ to 70℃) |
| Humidity Range | <95% RH (non-condensing) |
| Response Time (T90) | <30 seconds |
| Recovery Time | <60 seconds |
| Dimensions | 120 × 60 × 30 mm (example, can adjust based on model) |
| Weight | ~200 g |
| Calibration | Manual or automatic calibration options |
| Mounting Options | Portable handheld, clip-on, or wall-mounted |
| Accessories | USB charger, carrying case, calibration kit |
