Overview

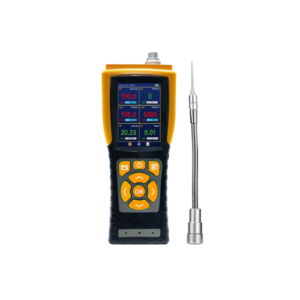

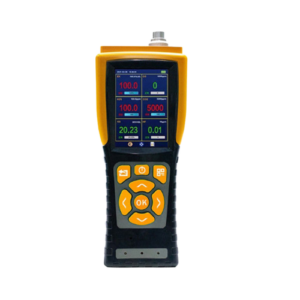

The portable gas detector enables mobile detection of oxygen, combustible gases, toxic and hazardous gases in the atmosphere. It can be flexibly configured with up to 6 different types of sensors as needed. Its core detection technologies encompass electrochemical, infrared, catalytic combustion, thermal conductivity, PID (photoionization detection), and other principles. The device integrates imported sensors with high-speed, high-precision processing circuits, offering advantages such as excellent signal stability, high detection accuracy, and superior data repeatability. It is widely applicable across industries including petroleum and petrochemicals, metallurgy, environmental monitoring, gas safety, fire rescue, municipal engineering, chemical production, marine operations, power systems, process control, wastewater treatment, and emergency response monitoring.
Features
- Real-time detection of oxygen, combustible, toxic & hazardous gases
- Configurable with up to 6 different sensor types
- Multiple detection principles: electrochemical, infrared, catalytic combustion, thermal conductivity, PID
- High-precision imported sensors with fast response & excellent stability
- Pump suction detection with 500 mL/min flow rate
- Wide detection range (ppm/%LEL/%VOL, selectable)
- High accuracy: ≤ ±2% F.S. with strong repeatability
- Rapid response (T90 ≤ 20 s) and recovery (≤ 30 s)
- Large 3.8-inch HD color screen with intuitive 8-button operation
- Multiple alarm modes: audible, visual, vibration, or combined
- Robust 5400mAh rechargeable polymer battery for long runtime
- Wide operating temperature: -40°F to +158°F (upgradable to +248°F)
- IP68-rated: fully dustproof and waterproof
- Intrinsically safe explosion-proof design for hazardous environments
- Extensive data storage (100,000 entries) with USB export and charging
- Lightweight (≈1.05 lb) and compact (8.86 × 3.46 × 2.28 in)
- Supplied with aluminum alloy case, charger, and standard accessories
Technical Specifications
| Type | Portable Gas Detector, Multi-Gas Detector (4-in-1 / 5-in-1) |
| Power Supply | DC 3.6V |
| Material | Plastic |
| Alarm Mode | Light, Audible, Vibration (single/combined) |
| Product Name | Multi Gas Detector |
| Detection Method | Pump Suction, 500 mL/min flow rate |
| Detected Gases | Ammonia (NH₃), CO₂, Combustible Gas, O₂, H₂S, CO |
| Detection Range | 0–10 / 0–100 / 0–1000 (ppm/%LEL/%VOL, selectable) |
| Resolution | 0.001, 0.01, 0.1, 1 (depending on gas) |
| Accuracy | ≤ ±2% F.S. |
| Linearity | ≤ ±2% |
| Repeatability | ≤ ±2% |
| Response Time (T90) | ≤ 20 s |
| Recovery Time | ≤ 30 s |
| Display | 3.8-inch HD color screen with 8-button operation |
| Battery | 5400mAh rechargeable polymer battery (3.6VDC) |
| Operating Temp. | -40°C ~ +70°C (-40°F ~ +158°F) |
| Optional High-Temp. | -40°C ~ +120°C (-40°F ~ +248°F) with cooling filter handle |
| Gas Temp. Range | -40°C ~ +70°C (-40°F ~ +158°F) |
| Temp. Measurement | -40°C ~ +120°C (-40°F ~ +248°F), accuracy ±0.5°C |
| Humidity Measurement | 0–100% RH, accuracy ±3% RH (optional) |
| Data Storage | 100,000 entries (view, delete, or export via USB) |
| Communication | USB (charging & data transfer) |
| Explosion-Proof | Intrinsically safe type |
| Protection Level | IP68 (dustproof & waterproof) |
| Dimensions | 225 × 88 × 58 mm (8.86 × 3.46 × 2.28 in) |
| Weight | 1.047 lb |
| Accessories | Manual, Certificate, Warranty card, USB charger + cable, High-grade aluminum alloy case |
