Overview

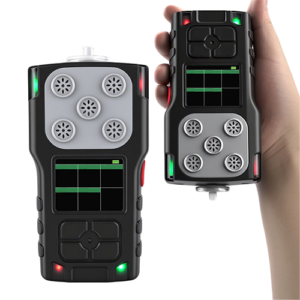

Enviro Forest’s portable multi gas detector with pump diffusion and data logging is a versatile device designed for industrial safety monitoring. It supports simultaneous detection of multiple gases, along with temperature and humidity measurement, using either pump-assisted sampling or passive diffusion. This device ensures reliable performance with intrinsically safe circuit design, fall and drop resistance, and multi-stage filtration to block dust, oil, and water. It offers large data storage capacity with easy USB export, making it highly suitable for demanding environments such as coal mines, oil fields, and manufacturing facilities.
Features
- Integrated pump and diffusion sampling modes
- Real-time detection of gases, temperature, and humidity
- Fall alarm and reinforced drop-resistant casing
- Large memory for 120,000 data logs and 30,000 alarm records
- Intrinsically safe explosion-proof circuit design
- Multi-stage filtration system for harsh environments
- USB data export with PC connectivity
Technical Specifications
| Size | 1.67 in x 3.08 in x 1.64 in (4.25 cm × 7.82 cm × 4.16 cm) |
| Accuracy | ± 3 % FS |
| Operating Temperature | – 4 °F to 122 °F (-10 ℃ to 50 ℃) |
| Working Air Pressure | 86 kpa to 106 kpa |
| Working Voltage | DC 5 V ± 1 % or DC 24 V ± 1 % |
| Preheating Time | T 90 < 10 s |
| Working Humidity | 0 to 95 % RH |
| Battery Capacity | 2400 mA |
