Overview

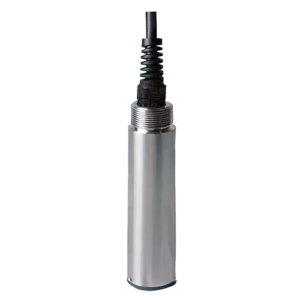

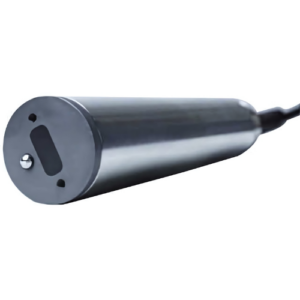

Enviro Forest pro clear aqua sense turbidity meter advanced sensor for pool and wastewater is a basic water quality monitoring digital turbidity sensor. Adopting 90 ° scattered light principle, using infrared LED light source, fiber optic conduction light path design method, the internal increase of filter design, anti-external light interference ability, built-in temperature sensor, automatic temperature compensation, suitable for online long-term monitoring environment.
Features
- A digital sensor with direct output Rs-485 digital signal, supports MODBUS/RTU.
- 90° angle scattering light principle, built-in temperature can be automatically compensated.
- The fiber-optic structure has strong resistance to external light interference.
- The infrared LED light source enhances the filter design, reduces light interference, and is stable.
- Anti-corrosion passivation treatment on the surface.
- Low power consumption of the sensor, internal circuit anti-interference design
Technical Specifications
| Range | 0 NTU to 1000NTU Or 0 NTU to 200 NTU |
| Accuracy | ± 5 % OR ± 3 NTU (0 NTU to 1000 NTU); ± 3 % OR ± 2 NTU (0 NTU to 200 NTU); ± 0.9 °F (± 0.5 ℃); |
| Resolution | 0.1 NTU, 32.18 °F (0.1 ℃) |
| Measurement Method | 90° scattered light method |
| Output Signal | Support RS485, MODBUS / RTU protocol |
| Response Time | 30 Seconds T90 |
| Temperature Compensation | Automatic temperature compensation (Pt 1000) |
| Power Supply | 12 or 24 Vdc ± 10 %, 10 mA |
| Size | 1.18 in x 6.55 in (3 cm x 16.65 cm) |
| Operating Temperature | 32 °F to 122 °F (0 to 50 ℃); < 0.6 MPa |
