Overview

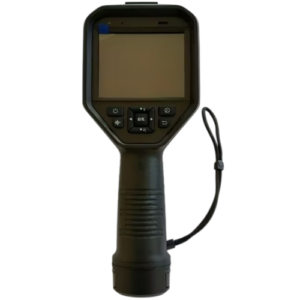

Enviro Forest Long-Range Infrared Thermal Camera combines high-resolution IR imaging with long-distance capability of ≥98.4 ft (30 m). This device features a 25°×18.8° FOV, 256×192 IR resolution, and continuous 1×–8× digital zoom. Built-in 32 GB storage and precise ±2°C or ±2% temperature accuracy make it ideal for industrial inspections and professional thermal analysis.
Features
- Long effective distance: ≥98.4 ft (30 m)
- Sensor size: 1/3 inch
- 32 GB storage capacity for images and videos
- Infrared response band: 7.5–14 μm with NETD <50 mK
- Max IR image size: 256×192 pixels
- Visible light photo resolution: 3264×2448
- Video resolution: 1600×1200
- Focal length: 0.27 in (6.9 mm)
- Field of view: 25° × 18.8°
- Digital zoom: 1×–8× continuous
- Frame rate: 25 Hz
- Spatial resolution (IFOV): 1.74 mrad
Technical Specifications
| Effective Distance | ≥98.4 ft (30 m) |
| Sensor Size | 1/3 inch |
| Storage | 32 GB |
| Response Band | 7.5–14 μm |
| NETD | <50 mK @ 25°C, F#=1.0 |
| Max Infrared Image Size | 256×192 |
| Max Photo Resolution | 3264×2448 |
| Video Resolution | 1600×1200 |
| Focal Length | 0.27 in (6.9 mm) |
| Field of View | 25° × 18.8° |
| Digital Zoom | 1×–8× continuous |
| Frame Rate | 25 Hz |
| Spatial Resolution (IFOV) | 1.74 mrad |
| Size | 9.61in × 3.94in × 4.09in (244mm × 100mm × 104mm) |
| Temperature Range | -4°F to 302°F (-20°C to 150°C), 212°F to 1022°F (100°C to 550°C) |
| Accuracy | ±3.6°F / ±2°C or ±2% |
