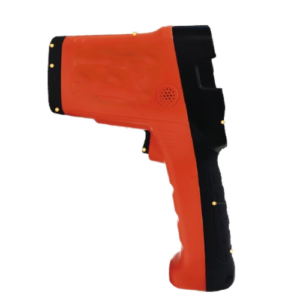

Overview
This Remote Laser Methane Detector (RMLD) is a non-contact gas analyzer that allows for the safe and efficient detection of methane from a distance. Utilizing a laser beam, it can quickly scan and pinpoint methane leaks without the need for direct access to the source, making it ideal for hard-to-reach areas. This technology significantly enhances safety by allowing operators to inspect pipelines, industrial facilities, and inaccessible locations from a safe distance. It’s an indispensable tool for routine inspections and emergency response, providing reliable and immediate gas analysis.
Features
- It is a non-contact detector, meaning you can find gas leaks from a safe distance.
- It uses a laser beam to quickly scan for methane and pinpoint a leak’s location.
- The device is ideal for checking areas that are hard to reach, like elevated pipes or dangerous zones.
- It improves safety by letting a person stay away from a potential gas leak.
- It is a very fast tool for both regular inspections and emergency situations.
- The detector gives immediate and dependable readings of gas levels.
Technical Specifications
| Parameter | Value |
| Target Gas | Methane and natural gas |
| Detection Principle | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
| Measuring Range | 0 to 99999 ppm·m; 0 to 100%LEL·m |
| Sensitivity | 5 ppm·m |
| Minimum Resolution | 1 ppm·m |
| Response Time | 0.05s |
| Alarm Mode | Alarm light, alarm sound |
| Alarm Volume | Adjustable volume |
| Display Content | Supports ppm·m, %LEL·m and %VOL·m display units |
| Protocol | Connectable to PAD and mobile phone |
| Battery Capacity | 5000 mAh |
| Battery Life | >10 hours |
| Ingress Protection (IP) Level | IP 65 |
| Laser Level | Measuring light: CLASS I; Pointing light: CLASS III B (avoid direct exposure) |
| Detection Distance | 0 to 150 m (static) |
| Working Environment Humidity | 0 to 95% RH (non-condensing) |
| Working Environment Temperature | -40°C to 60°C (-40°F to 140°F) |
| Host Weight | ~0.5 kg (~1.1 lb) |
| Temperature Range | -4°F to 113°F |
| Weight | 4.85 lbs |
