Overview

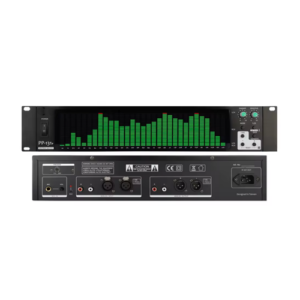

Enviro Forest’s audio spectrum analyzer is a professional-grade rack-mounted unit designed for precise sound monitoring, live performance, and studio applications. Built with a thin 2U chassis, this system combines advanced DSP chip control with a real-time 31-band frequency display, making it a reliable solution for accurate audio visualization. Its integrated LED module offers smooth and dynamic spectrum representation, helping engineers and sound technicians adjust audio with greater precision. The analyzer includes user-friendly panel controls that allow brightness and sensitivity adjustments, ensuring optimal visibility under different lighting conditions.
Features
- Standard 2U thin and compact rack chassis
- High-performance DSP chip for accurate control
- Real-time 31-band frequency point level display
- Dynamic LED module with smooth visualization
- 30 lights per frequency point for detailed signal monitoring
- Easy-to-use panel with stable and durable build
- Supports XLR and RCA input or output connections
- Real and smooth spectrum display modes
- Multiple graphics display switching options
- Peak hold time and spectrum fall time settings
- Stereo sampling with dual independent display
- Microphone input with volume adjustment
- Automatic gain adjustment function
- Adjustable spectrum brightness and sensitivity
- AC full voltage power supply support
Technical Specifications
| Power Supply Requirement | AC 90 V to 260 V (50 Hz or 60 Hz) |
| Power Consumption | 10 W to 15 W |
| Input Interface | XLR, RCA |
| Input Sensitivity | 0 V to 1 V |
| Output Interface | XLR, RCA |
| LED Module | 30 points of LEDs x 930 points across 31 segments |
| LED Colors | Emerald green, bright red |
| Dimensions (W x D x H) | 19.02 in x 3.46 in x 5.12 in (48.3 cm x 88 mm x 13 cm) |
| Net Weight | 5.51 lb (2.5 kg) |
