Overview:

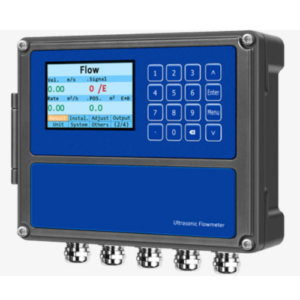

EFOUMFM-325 is a wall-mount, clamp-on type ultrasonic flow meter which uses transfer time technology. Designed using FPGA chip and low-voltage broadband pulse transmission. Both Clamp on type sensors and Insertion type sensors are available. EFOUMFM-325 has a 320 x 480 backlit Color TFT with 10-line menu display and also the clear, user-friendly menu selections make flow meter simpler and more convenient to use. Daily, monthly and yearly totalized flow. Parallel operation of positive, negative and netflow totalizes with scale factor (span) and BTU Capacity. While the output of totalize pulse and frequency output are transmitted via relay and open collector. It could add the RTD model and temperature sensor become an energy meter to monitor the energy use, helping to save the energy. It is equipped with an all-metal casing, providing high protection. It has excellent conductivity and heat conductivity and boasts outstanding durability and impact resistance.
Application:
EFOUMFM-325 ultrasonic flowmeter is widely applicable in HVAC, water treatment, irrigation.
Technical Specifications:
| Performance | |
| Flow range | ±0.03m/s to ±12m/s |
| Accuracy | ±1% of measured value |
| Repeatability | 0.2% of measured value |
| Linearity | ±1% |
| Pipe size | DN15mm to DN1200mm |
| Function | |
|
Outputs |
Analog output: 4 to 20mA, max load 750Ω. Pulse output: 0 to 10KHz |
| Communication | RS232 or RS485 Modbus |
| Power supply | 10 to 36VDC or AC90 to 245V |
| Display | 320 x 480 Color TFT screen display |
|
Temperature |
Transmitter: -40℉ to 140℉ (-20℃~60℃)
Transducer:-40℉ to 176℉(-40℃~80℃, TT01、TT02) Transducer:-40℉ to 266℉(-40℃~130℃, TT03、TT05) Transducer:-40℉ to 356℉(-40℃ to 180℃, TT02H) Transducer:32℉ to 149℉(0℃ to 65℃, TT02S) Transducer:32℉ to 239℉(0℃ to 115℃, TT03S) Transducer:-40℉ to 266℉(-40℃ to 130℃,Piping ) |
| Humidity | Up to 99% RH, non-condensing |
| Physical | |
| Transmitter | Aluminum alloy, IP65 |
|
Transducer |
Encapsulated design, IP68 Double-shielded transducer cable
Standard/maximum cable length:30ft/1000ft(9m/300m) |
