Overview

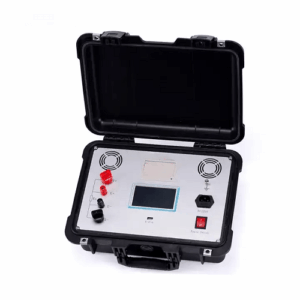

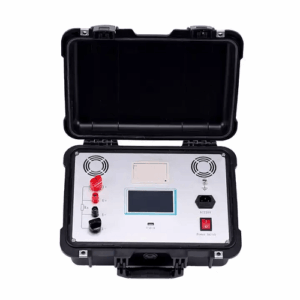

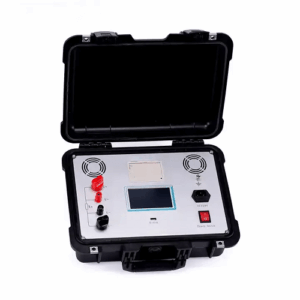

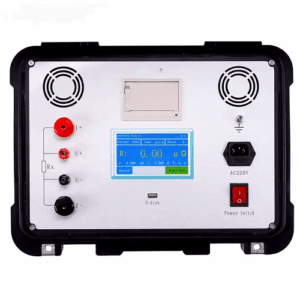

Enviro Forest digital loop resistance meter adopts the new technology of the power supply, which can continuously output large current for a long time. It overcomes the defect of impulse instantons current of the power supply and can effectively break through the oxidation film of switch contact and get good test results under the condition of serious interference, the last bit data of LCD can be stable at ±1 word. The scope of stable reading, good repeatability. This product has a long service life. All micro Ohmmeter adopts high precision resistance, which effectively eliminates the influence of the environment temperature on the measurement results. Meanwhile the use of military connectors enhances anti-vibration performance.
Technical specification
| Measuring range | 0 μ Ω to 2999.9 μ Ω |
| Resolution | 0 to 99.99，0.01 μ Ω; 100.0 to 2999.9，0.1 μ Ω |
| Test current | DC 50 A, 100 A two-speed fixed output |
| measurement accuracy | ± (0.5 % rd + 2d) |
| Continuous working time | 5 s to 599s |
| Display method | Large screen Chinese LCD display |
| communication mode | U disk dump |
| Working power | AC 220 V ± 10 % 50 Hz |
| Total power | 600 W |
| Maximum storage record | 200 |
| working environment | temperature- 14°F to 104°F (- 10 ℃ to 40 ℃) ，humidity：≤ 80 %RH |
| Dimensions | 14.2 in x 11.8 in x 9.8 in (360 mm × 300 mm × 250 mm) |
| Weight | 17.6 lb (8 kg) (No attachments) |
