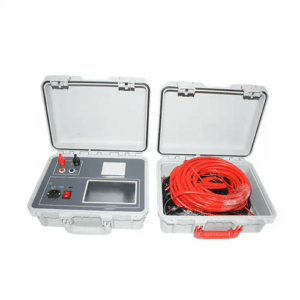

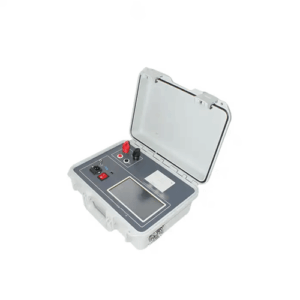

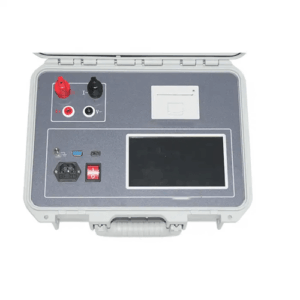

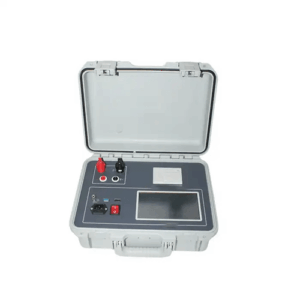

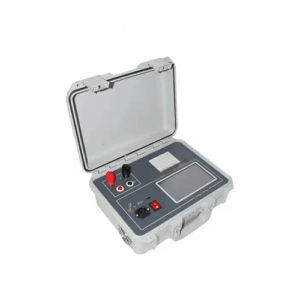

Enviro Forest Dynamic Contact Resistance Meter

Name: Enviro Forest Dynamic Contact Resistance Meter - Enviro Forest
SKU: EFOOHM-170

This Dynamic Contact Resistance Meter has 14 °F to 122 °F of temperature, accuracy of ± (0.5 % rdg +2 words), and output current of 200 A 100 A.

SKU: EFOOHM-170 Category: Insulation Resistance Testers

Technical Specification

Output Current	200 A 100 A
Open Circuit Voltage	10 V
Measuring Time	1 min
Resolution	1 μΩ
Humidity	≤ 85% RH
Accuracy	± (0.5% rdg +2 words)
Temperature	14 °F to 122 °F (-10 °C to 50 °C)
Current Measurement	50 A, 100 A,150 A,200 A
Range	0 mΩ to 100 mΩ (50 A), 0 mΩ to 50 mΩ (100 A)0 mΩ to 20 mΩ (150 A) 0 mΩ to 20 mΩ (200 A)
Resolution	0.1 µΩ At Min.
Precision	± (0.5% ±2)
Power Consumption	1000 W
Dimension	11.81 in x 9.05 in x 8.66 in (300 mm x 230 mm x 220 mm)
