Technical Specification
| Rated voltage | 500 V or 1000 V or 2500 V or 5000 V |
| Measuring Range | 0 MΩ to 1000 GΩ |
| Testing Voltage | 0 to 600 V AC or DC |
| Display Type | Digital Only |
| Open Circuit Voltage | DC 500 V +30 %, -0 % to DC 5000 V +20 %, -0 % |
| Insulation Resistance Testing Range |
0.0 MΩ to 1000 GΩ |
| Short Circuit Current | 1.3 mA |
| Insulation Resistance Accuracy |
0 Ω to 99.9 GΩ ± 5 % rdg ± 3 % rdg above 100 GΩ ± 20 % |
| Voltage Testing Range | DC ± 30 V to ± 600 V AC 30 V to 600 V (50 Hz or 60Hz) |
| Voltage Resolution | 1 V |

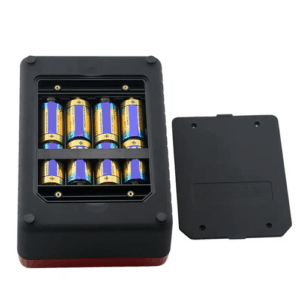

| Power supply | 8 x 1.5 LR14 |
| Accuracy | ± 2 % rdg ± 3 rdg |
| Sampling Rate | 0.5 times / sec to 10 times / sec |
| Operation Condition | 32 °F to 104 °F (0 °C to 40 °C) ≤ 85 % RH |
| Storage Condition | -4 °F to 158 °F (-20 °C to 60 °C) ≤ 90 % RH |

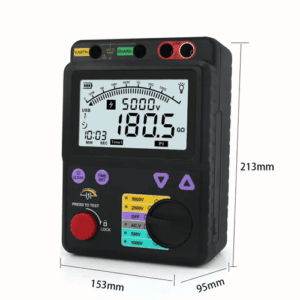

| Dimensions | 6.02 in x 8.38 in x 3.74 in (153 mm x 213 mm x 95 mm) |
| Product Net Weight | 2.26 lb (1027 g) |
