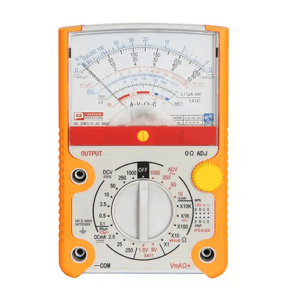

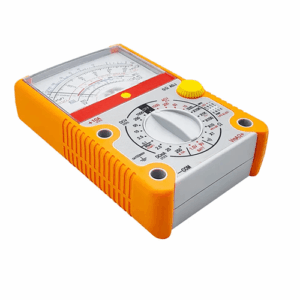

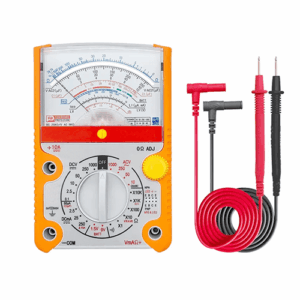

Enviro Forest Handheld Analog Ohmmeter

Name: Enviro Forest Handheld Analog Ohmmeter - Enviro Forest
SKU: EFOOHM-234

This Handheld Analog Ohmmeter has an operating temperature of 32 °F to 104 °F, resistance range of 20 MΩ, overload protection of 250 V.

SKU: EFOOHM-234 Category: Insulation Resistance Testers

Technical Specifications

High input impedance	DCV 10 KΩ or V ACV 4.5 KΩ or V
Overload protection	0.5 A or 250 V
DC voltage range	(±3.0 % F.S) 0.25 V or 2.5 V or 10 V or 50 V or 250 V or 1000 V
AC voltage range	(±4.0 % F.S) 10 or 50 V or 250 V or 1000 V
DC current range	(±3.0 % F.S) 0.1 mA or 2.5 mA or 25 mA or 250 mA 10 A (±4.0 % F.S) without 10 A Fuse
Resistance range	(1.0 Ω to 20 MΩ, ±3.0 % of Arc.) x 1, x 10, x 100, x 1 K, x 10 K
Dry battery check	1.5 V, 9 V
Decibel test	-20 dB to +62 dB via test leads with an external polyester capacitor 0.047 uF or 400 V
Operating Temperature	32 °F to 104 °F (0 ℃ to 40 ℃)
Dimensions	6.2 in x 4.1 in x 1.5 in (160 mm x 105 mm x 40 mm)
Weight	Approximately 0.70 lb (320 g)
