Overview

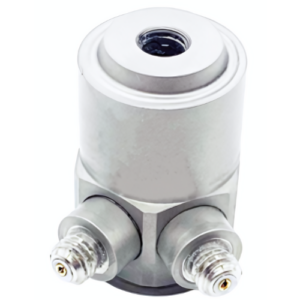

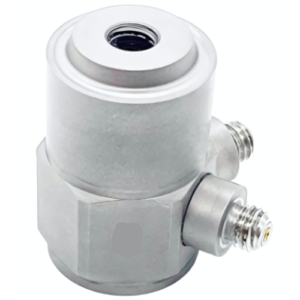

Enviro Forest Impedance Head, Force Sensor, ±1000 N Range, M5 Thread impedance head simultaneously measures an applied, driving–point force and response acceleration of a test structure for determining parameters such as mechanical mobility and mechanical impedance. The unit consists of a precision accelerometer and a quartz force Sensor in a common housing. Installation is primarily facilitated at the structural excitation points, in series with a stinger and vibration shaker.
Features
- Easy installation with M5 thread mounting.
- Compact design with integrated accelerometer and force sensor.
- Versatile use for various structural testing applications.
- Durable construction for rigorous testing environments.
- Wide measurement range for both force and acceleration.
Technical Specifications
| Mounting Type | M5 Thread |
| Acceleration Sensitivity | 50 pC / g |
| Acceleration Range | ± 500 |
| Acceleration Frequency | 0.5 kHz to 5 kHz |
| Force Sensitivity | 4 pC /N |
| Force Range | ± 1000 N |
| Force Frequency | ≥ 55 kHz |
