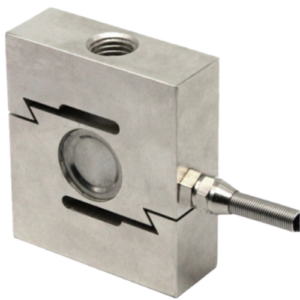

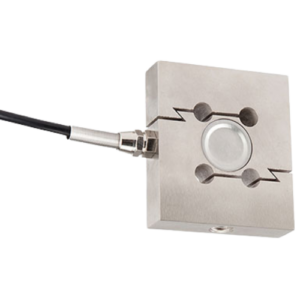

High Accuracy Robotic Arm Tension Compression Weighing Gravity Sensor– Enviro Forest

Name: High Accuracy Robotic Arm Tension Compression Weighing Gravity Sensor– Enviro Forest - Enviro Forest
SKU: EFOMFS-211

Robotic arm tension compression sensor with 0.1 to 20 t load capacity, 2.0 mV/V sensitivity, high precision, and temperature stability.

SKU: EFOMFS-211 Category: Industrial Monitoring Sensors

Technical Specifications

Rated Load	0.11 ton to 22.05 ton (0.1 t to 20 t)
Sensitivity	2.0 mV/V
Comprehensive Precision	0.02 to 0.05 % F.S.
Creep	±0.02 % F.S. / 30 min
Zero Output	±1 % F.S.
Input Resistance	380 ± 10 Ω
Output Resistance	350 ± 3 Ω
Insulation Resistance	> 5000 MΩ
Safe Load Limit	150 % F.S.
Bridge Voltage	Recommendation 10 V DC
Material	Alloy Steel
Load Cell Mode Of Connection	Input+: Red, Input-: Black, Output+: Green, Output-: White
Temperature Effect On Zero	±0.02 % F.S. / 18 °F (±0.02 % F.S. / 10 °C)
Temperature Effect On Output	±0.02 % F.S. / 18 °F (±0.02 % F.S. / 10 °C)
Operating Temperature Range	-4 °F to 149 °F (-20 °C to 65 °C)
Single Package Size	5.91 in x 5.91 in x 3.15 in (15 cm x 15 cm x 8 cm)
Single Gross Weight	17.63 oz (500 g)
