Overview

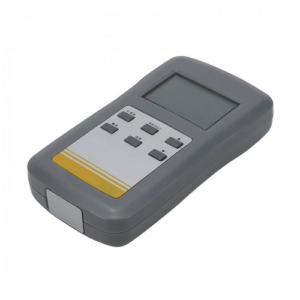

Enviro Forest`s high precision auto calibration milliohm meter with resistivity calculation is designed for accurate low-resistance measurements with automatic calibration capabilities. This device features high resolution of 120,000 counts and provides precise measurements from 0.01mΩ to 1kΩ across multiple ranges. It includes specialized functions for calculating square number, meter number, and resistivity, making it ideal for testing wires, transformers, motors, and various electrical components. The handheld design with rechargeable battery ensures portability for field applications.
Features
- Automatic calibration functionality
- High resolution of 120,000 counts
- Resistivity calculation capability
- Temperature compensation technology
- Multiple measurement ranges (1Ω, 10Ω, 100Ω, 1kΩ)
- Rechargeable battery operation
- Wire length and cross-sectional area calculation
Technical Specifications
| Measuring Ranges | 1Ω, 10Ω, 100Ω, 1kΩ |
| Minimum Resolution | 0.01 mΩ |
| Accuracy | ± (0.08% reading + 0.02% range) to ± (0.12% reading + 0.03% range) |
| Display Resolution | 120,000 counts |
| Temperature Drift | ± 100 ppm [50 °F to 104 °F (10 °C to 40 °C)] |
| Power Supply | Built-in 18650 rechargeable battery |
| Dimensions | 7.09 in x 5.12 in x 3.94 in (18 cm x 13 cm x 10 cm) |
| Weight | 1.10 lb (0.5 kg) |
